A024 AIS Receiver with NMEA Multiplexer + WiFi
135,50 €
Sofort verfügbar, Lieferzeit: 1-2 Wochen
Produktinformationen "A024 AIS Receiver with NMEA Multiplexer + WiFi"

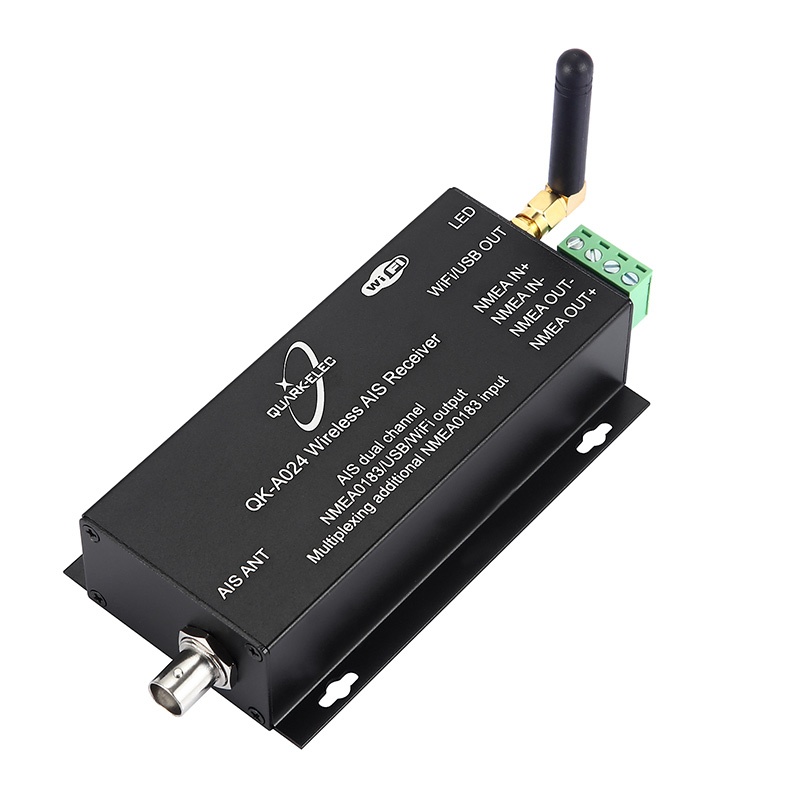

A024 AIS Receiver with NMEA Multiplexer + WiFi
AIS Empfänger und NMEA Multiplexer
Dual-Channel AIS Empfänger mit NMEA Datenausgabe via Wifi, Seriell und USB.
Funktioniert mit vielen NMEA Kartenprogrammen

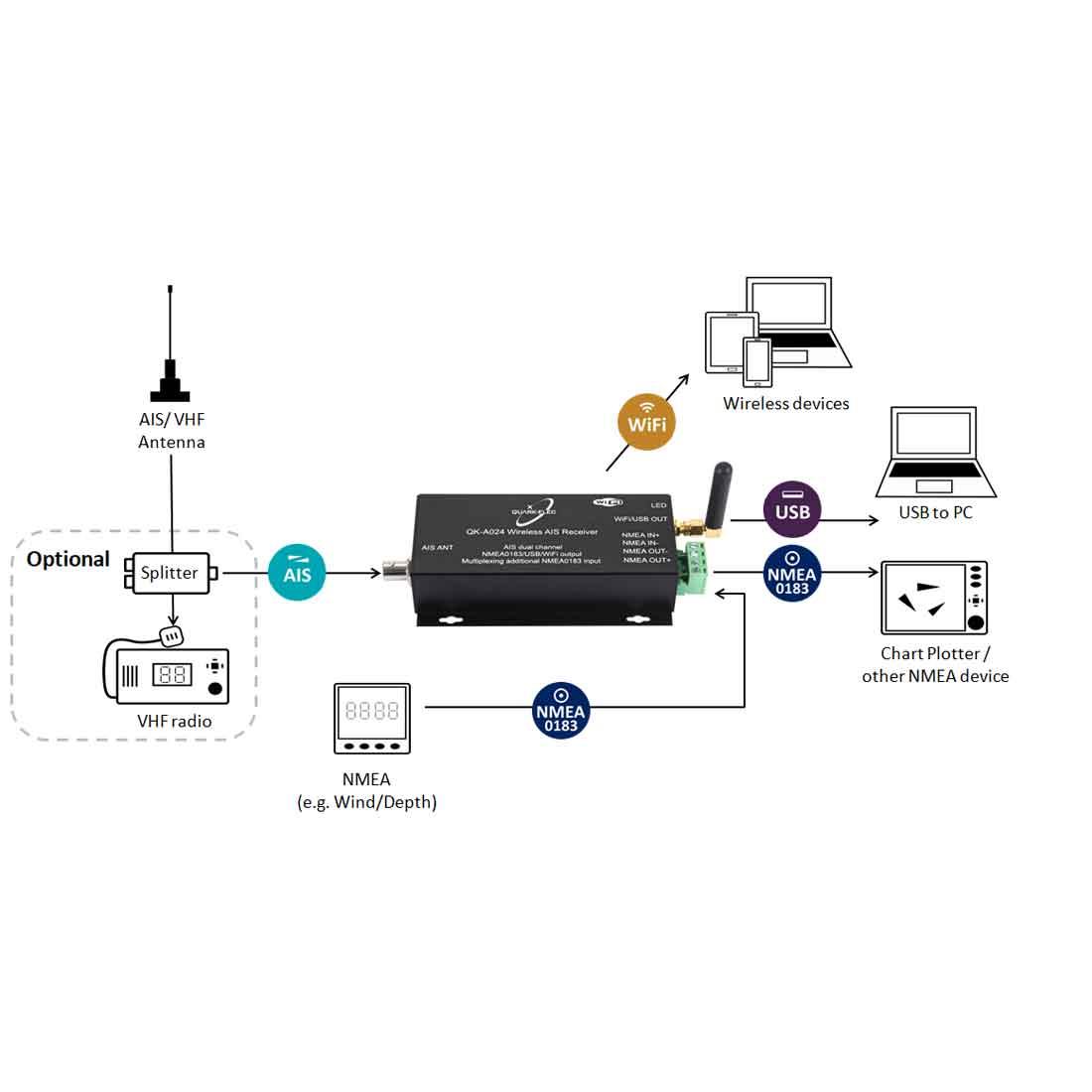

Der A024 kombiniert AIS-Daten aus zwei Kanälen mit NMEA-Informationen und ermöglicht es Ihnen, diese drahtlos überall an Bord auf Smartphones, Tablets und Laptops anzuzeigen. Zusätzlich besteht die Möglichkeit, einen Kartenplotter oder ein anderes Gerät Ihrer Wahl anzuschließen.
Produktmerkmale:
- Kompakter Dual-Channel-AIS-Empfänger
- Multiplexer: kombiniert AIS-Daten mit NMEA 0183
- Nutzung drahtlos (WiFi) oder über USB- bzw. NMEA-Anschlüsse
- Empfangsreichweite bis zu 22 Seemeilen
- Kompatibel mit Kartenplottern, Windows, macOS, Linux, Android und iOS
| Feature | Description |
|---|---|
| AIS Receivers | Two independent receivers monitoring AIS channels (161.975 MHz & 162.025 MHz) and decoding simultaneously |
| Sensitivity | Down to –105 dBm @ 30% PER |
| Receiving range | Up to 22 nautical miles |
| Power | USB 2.0 powered (<270 mA @ 5.0 V) |
| Output formats | NMEA-0183 messages via WiFi, USB, and RS422 |
| NMEA stream | Combines NMEA input AIS messages into a seamless output stream |

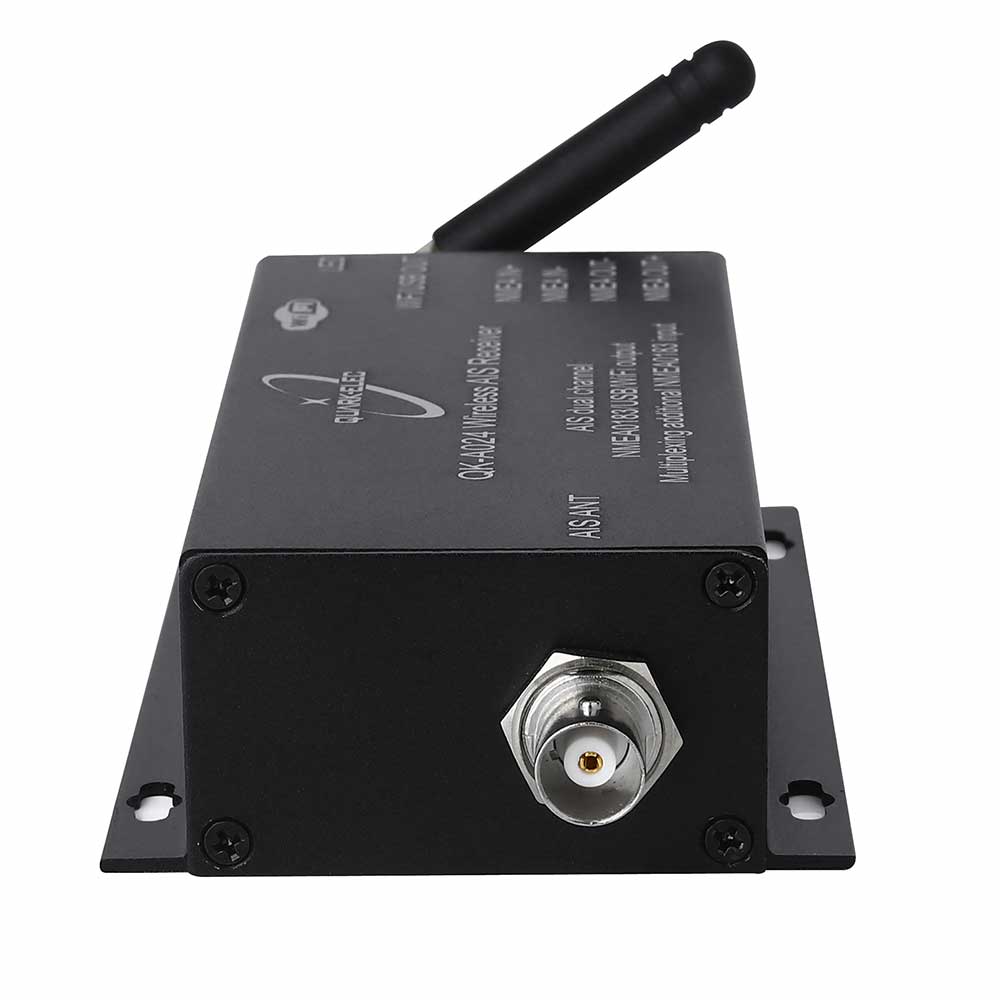

| Antenna connector | BNC connector for 50-Ohm VHF antenna |

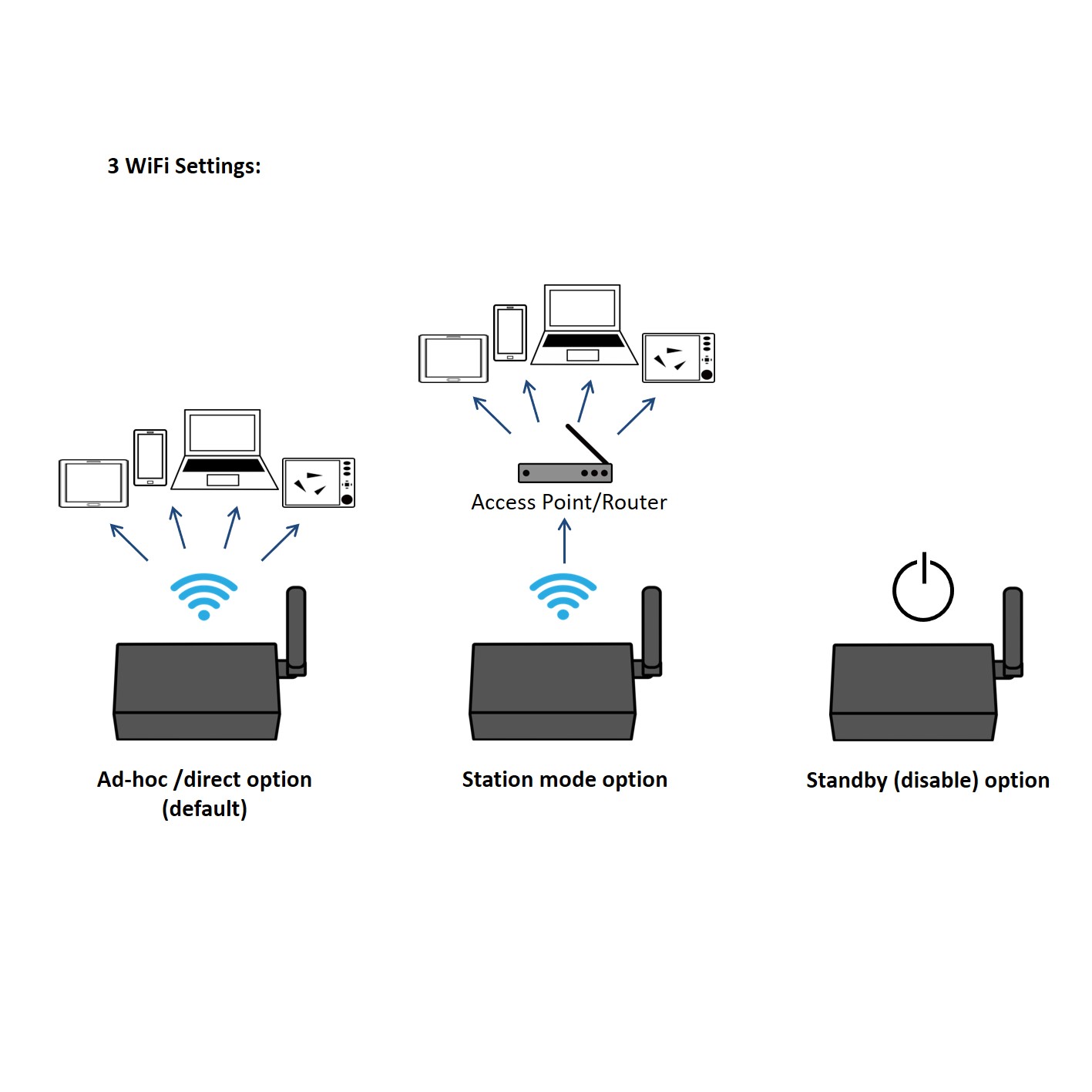

| WiFi | Ad hoc and Station operating modes |
| GPS/WiFi standby | Supported from firmware v1.2 (May 2020 onward) |
| Compatibility | Windows XP/7/8/10, macOS, Linux, Android, iOS (initial setup requires Windows) |
| Connectivity | Plug-and-play with chart plotters and PCs |
| Additional support | Compatible with Garmin and older RS232 devices via Protocol Bridge (AS03) |
