DS-SI5351C Frequenznomal
249,50 €
Sofort verfügbar, Lieferzeit: 2-5 Tage
Produktinformationen "DS-SI5351C Frequenznomal"

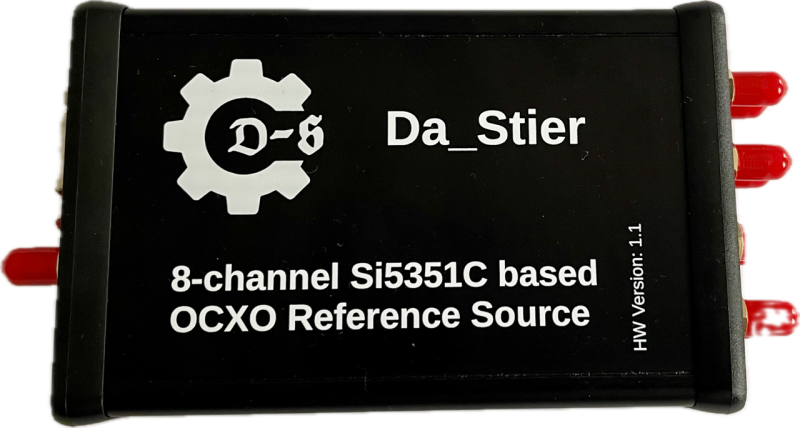

DS-Si5351C – Programmable 8-Channel Frequency Generator by Da_Stier
The DS-Si5351C is a programmable frequency generator with 8 independent channels.
Each output can be individually configured via a serial terminal or through the integrated WiFi web interface.
Frequencies can be set with a resolution of 1 Hz.
This makes the unit highly versatile — e.g. as a precise 10 MHz or 25 MHz reference source, or as an IQ signal generator.
For SDR applications, two channels can be configured as an IQ generator.
Technical Specifications
Supply Voltage: 12 V DC

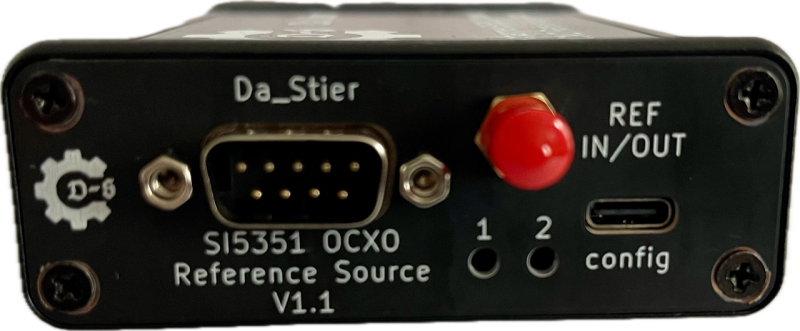

Power/Control Connector: SubD DB-9 Male
Programming Interface: USB-C
Frequency Range: 1 MHz – 200 MHz (IQ: 7 MHz – 150 MHz)
Signal Type: Square wave

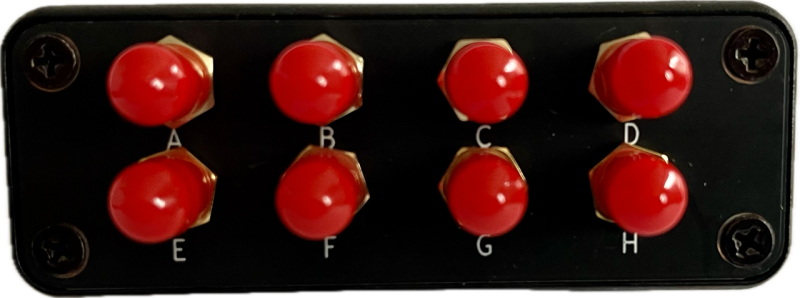

Outputs: 8 × SMA Female
Output Power: approx. 3–12 dBm (adjustable via mA setting)
Operating Temperature: –25 °C to +45 °C
Package Contents
8-Channel Reference Source
12 V DC Power Supply
Sub-D Adapter with Screw Terminals (pre-assembled)
USB-C Programming Cable
Manual
