GP Probe DIN L1

The GP-Probe DIN L1 is a cost-effective GNSS interference detector specially designed for the detection of interference by GPS / GNSS spoofing or jamming. This one-channel device scans the 60 MHz spectrum within the L1 frequency band and monitors the accuracy of GNSS signals. It can work autonomously or be used in combination with the GP cloud to provide additional analysis and monitoring capabilities.

The main features include spoofing and jamming detection. Anomalies in GNSS signals are detected and classified. The real-time analysis enables immediate action on-site - e.g. automatic disconnection of the time servers, alarm via relay or own procedures via LUA-scripting. The sensor can be seamlessly integrated into existing systems. It is particularly useful for securing critical infrastructures that rely on precise GNSS data, such as time servers or navigation systems.

Technical data:

•     Frequenzband: GNSS L1 (1575,42 MHz)
•     Scanbereich: 60 MHz (L1 Band)
•     Unterstützte Konstellationen:
  • GPS L1 C/A
  • QZSS L1 C/A L1S
  • GLONASS L1OF
  • BeiDou B1I/B1C
  • Galileo E1B/C
  • SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
•     Erkannte Störungen: Spoofing und Jamming

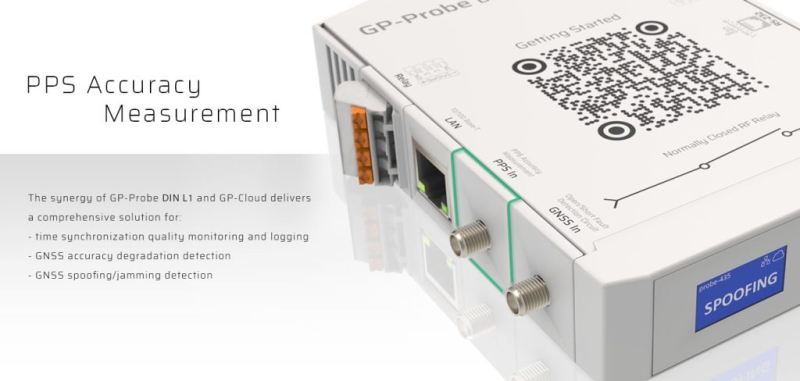

•     Überwachung: PPS (Pulse Per Second) Genauigkeit
•     Einsatzmöglichkeiten: Eigenständig oder in Verbindung mit GP-Cloud
•     Datenausgabe: Echtzeitüberwachung mit Anomalieerkennung
•     Spannungsversorgung: 12-48V DC

Interfaces:

• Communication interfaces: network, relay, Lua scripting and others

• Cloud support: GP cloud compatible for improved analytics and logging


Dimensions & Weight:

• Compact design for easy integration into existing systems

• 139.4x118x25mm

• Mounting: DIN rail (DIN rail) compatible

• 0.5 kg


Areas of application:

• Protection of critical infrastructures

• Time servers and navigation systems

• Preventive safety monitoring against GNSS interference

• Official and civilian applications to secure GNSS-based services


Special features:

• Real-time interference monitoring

• Analysis and classification of GNSS signal disturbances

• High ability to integrate into existing infrastructures

• Through GPS input and output simple looping into existing RF paths of e.g. weather stations or time servers possible.


Options:

• Hardware Options:
  • PPS: PPS accuracy Measurement - bereits integriert
  • BL: Build in RF Blocker - bereits integriert
  • RL: Relais und RS232 - bereits integriert
  • SCR: Display und Keypad - bereits integriert
• Software Options:
  • OSP: Software option for basic onboard interference and anomalie detection (Important if sample is to be operated without cloud) - optional (one-time cost / perpetual license)
  • LUA: Develop custom scenarios for external equipment remode control via RS232 with the emdedded LUA scripting engine - optional (one-time cost / perpetual licence)
  • STREAM: Software option for streaming raw GNSS Data via websocket - optional (one-time cost / perpetual licence)
• Cloud Option:
  • Subscription to GP-Cloud: Advanced spoofing/jamming detection, GNSS signal quality monitoring, 14 days storage of measurement results, 12 month events data storage, Real-time event notifications via RabbitMQ, Webhooks, email
    Unlimited users
  • Useful, for example, for logging data for later evaluation, for insurance questions or for networking and managing several sensors
  • The cloud option is optional (annual license)
  • The cloud option is pre-selected.
  • The sensor can:

• • • Work completely self-sufficient (OSP option)
    • Only work with the cloud (GP-Cloud Subscription)
    • Self-sufficient and working with the cloud (OSP and Cloud Subscription)
  • Please adjust the options accordingly when ordering.
  • For information on integration into your own on-prem cloud, please contact.
