Link S3LW
49,90 €
Produktinformationen "Link S3LW"
Developer board with ELPM Lora module and ESP32 under one roof
Quick testing and provisioning:
The OBJEX Link S3LW convinces in the rapid prototyping, the development of IoT solutions as well as the testing and prototyping of IoT devices before mass production. Its versatility and easy integration allow designers and developers to create functional prototypes quickly, easily and securely. This will massively accelerate the transition from prototypes to production.
Easy integration into ecosystems such as Home Assistant.
flexible development options.

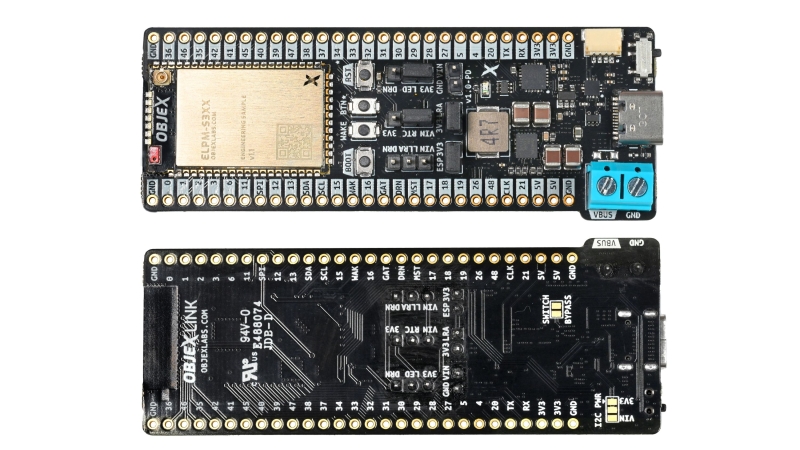

The OBJEX Link S3LW is a development board based on the ELPM-S3LW. It is specially designed to meet the requirements of lowest energy consumption at the smallest size and maximum performance. Developers can implement projects that require both extreme low-energy operation and high-performance functionality with up to 100 W (USB-C PD 3.0 PPS).
Important features:
- Versatile energy management: Supports both extreme low-energy operation (down to nanoamps) and high-performance functionality (up to 100 W) through fine-grained control of the energy supply.
- LoRa/LoRaWAN support: Ideal for long-range projects thanks to the integrated SX1262 transceiver.
- Comprehensive connectivity: Includes Wi-Fi (2.4GHz, 802.11 b/g/n) and Bluetooth 5 (LE) for a variety of communication needs.

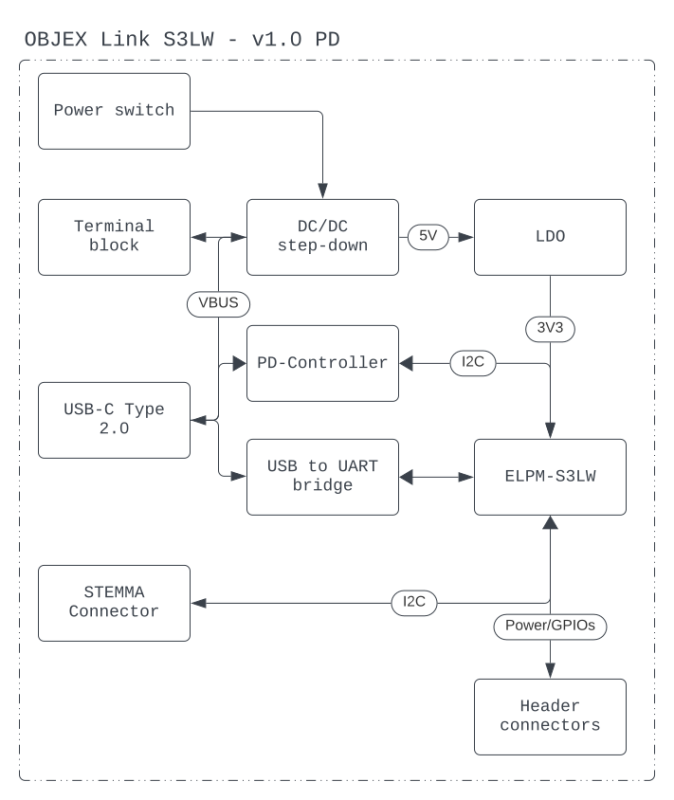

Technical Data:

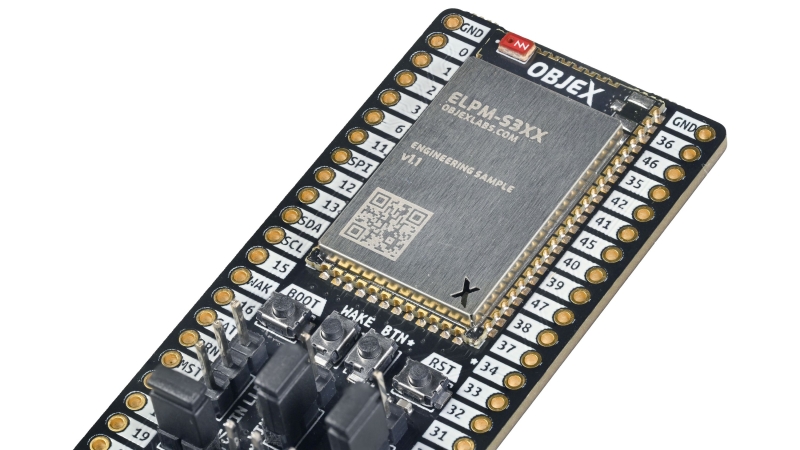

- Powered by ELPM-S3LW v1.2 module (see full specs below)
- USB-C Type 2.0 PD PPS 3.0 (21 V 5 A)
- Terminal block for Vbus (USB Type-C PD)
- DC/DC synchronous step-down (V-out: 5 V 2 A)
- USB to UART Bridge (CP2102/CP2104)
- Power switch
- STEMMA 4 Pin - I2C connector
- Size: 30.50 x 84.74 mm (1.2 x 3.34 mm)
- Weight: 16.85 grams (0.59 oz)
