ADSBee 1090U
€151.90
Available, delivery time: 1-2 weeks
Product information "ADSBee 1090U"
ADSBee 1090U
The ADSBee 1090U is an dual-band ADS-B receiver, receiving both 1090MHz Mode S and 978MHz UAT messages.
Features:
- Mode S Packet Decoding (DF 4, 5, 11, 17)
- Reporting protocols (provided over USB and UART, * = available over WiFi)
- RAW (bit values from validated decoded packets)
- MAVLINK1
- MAVLINK2
- CSBee (custom ASCII protocol that provides details about each aircraft and overall decode statistics)
- GDL90 (Garmin binary protocol that reports details about each aircraft)*
- Mode S Beast (binary protocol used to feed online exchanges with raw packet data)*
- Operational modes (all of these modes can be used simultaneously)
- Serial receiver: Transmit raw packet data or aircraft information over USB or UART, for use with devices such as drone autopilots, computers ingesting data with pyserial, etc.
- WiFi Access Point: Hosts its own WiFi network that you can join with a phone, tablet, or computer to receive GDL90 aircraft information on Port 4000 (works with Foreflight and Avare).
- WiFi Station: Joins an existing WiFi network to report raw packet information to online exchanges via the Mode S Beast protocol.
NOTE: This unit is in Beta. There will be bugs, but the firmware will be steadily improved, hopefully with the assistance of helpful issue reports from enthusiasts like you ;)
Empfohlenes Zubehör
ADSBee 1090U Enclosure (DUAL SMA Connector)3D-printed PETG enclosure for an ADSBee 1090U dual-band receiver. Includes 2x pre-installed SMA to U.FL bulkhead connectors and 4x M2.5 socket-head mounting screws. NOTE: Does not include an FPC WiFi antenna (these are shipped with the receiver PCBAs). If you need an extra antenna or a removal tool, they are available separately
1090MHz 2.2dBi Sleeve Dipole Antenna This 1090MHz sleeve dipole antenna is custom made for Pants for Birds, and is suitable for outdoor installation. 1090MHz antennas connect to the 1090 port on an ADSBee 1090U, and are used to receive Mode S / ADS-B data.

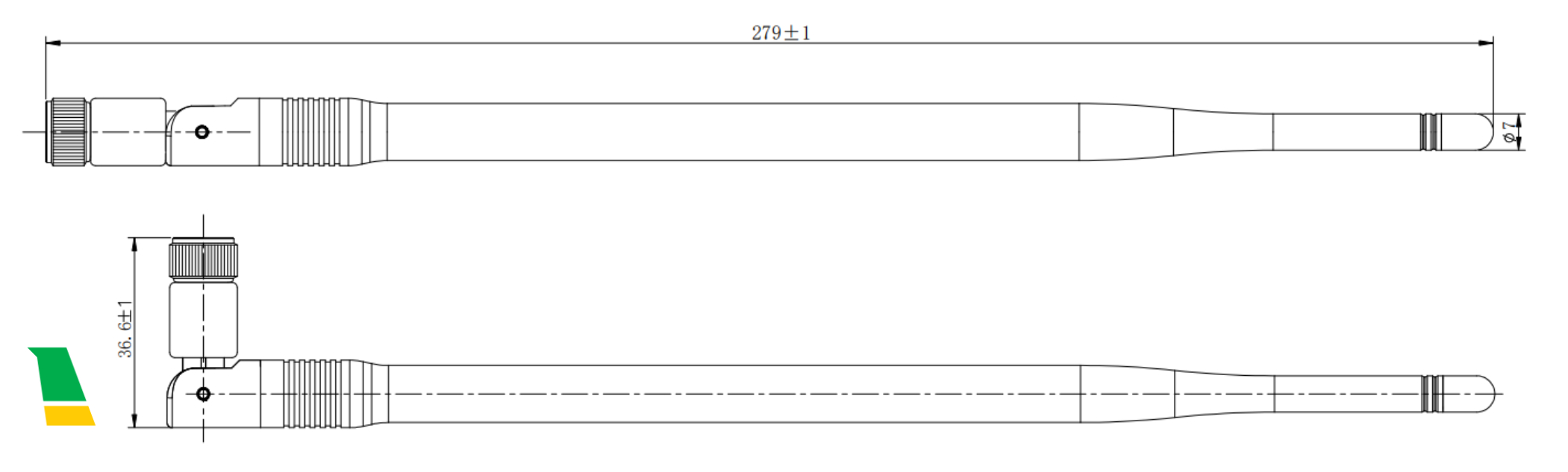

978MHz Waterproof Sleeve Dipole Antenna This 978MHz sleeve dipole antenna is custom made for Pants for Birds, and is suitable for outdoor installation. 978MHz antennas connect to the sub-GHz transceiver on the ADSBee 1090U, and are used to receive UAT (Universal Access Transceiver) data in the United States.
