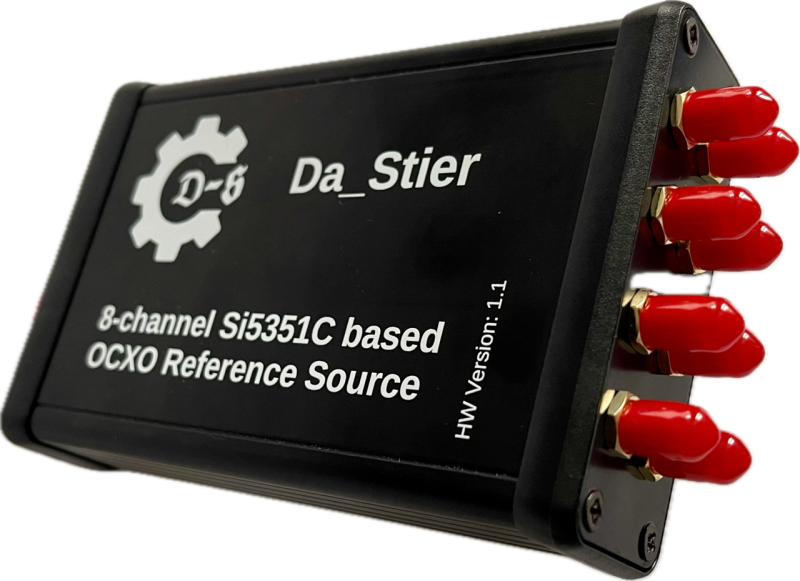

DS-SI5351C Frequenznomal
DS-Si5351C – Programmable 8-Channel Frequency Generator by Da_StierThe DS-Si5351C is a programmable frequency generator with 8 independent channels.Each output can be individually configured via a serial terminal or through the integrated WiFi web interface.Frequencies can be set with a resolution of 1 Hz.This makes the unit highly versatile — e.g. as a precise 10 MHz or 25 MHz reference source, or as an IQ signal generator.For SDR applications, two channels can be configured as an IQ generator.Technical SpecificationsSupply Voltage: 12 V DCPower/Control Connector: SubD DB-9 MaleProgramming Interface: USB-CFrequency Range: 1 MHz – 200 MHz (IQ: 7 MHz – 150 MHz)Signal Type: Square waveOutputs: 8 × SMA FemaleOutput Power: approx. 3–12 dBm (adjustable via mA setting)Operating Temperature: –25 °C to +45 °CPackage Contents8-Channel Reference Source12 V DC Power SupplySub-D Adapter with Screw Terminals (pre-assembled)USB-C Programming CableManual
