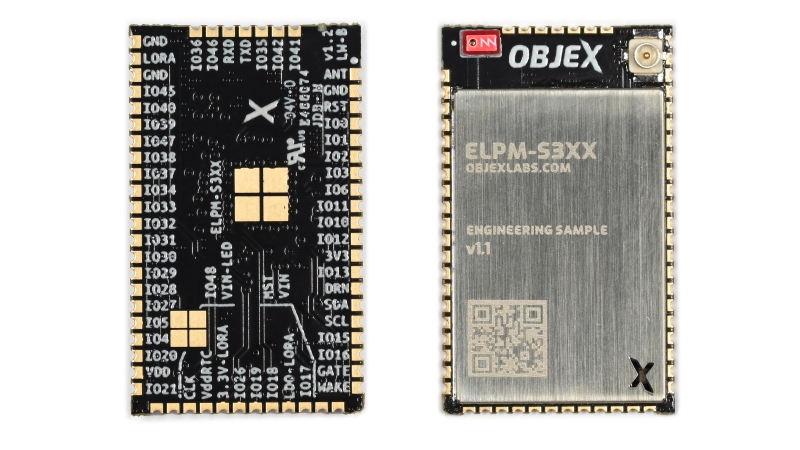

ELPM-S3LW
ELPM-S3LW Extremely low power module for IoT applications Combines LoRa and ESP into one module The ELPM-S3LW is a breakthrough for developers who develop battery-powered IoT devices and applications for power generation.This innovative module combines the power of the ESP32-S3FN8 microcontroller with the Lora SX1262 long-range transceiver while focusing on minimal energy consumption.Features: Ultra Low Power Design: The ELPM-S3LW has an integrated power unit that adapts to your specific needs and minimizes energy consumption. With its deep stop mode, this module is ideal for applications where battery life is crucial.Perfect for a variety of applications: Whether you're developing industrial solutions or general IoT devices, the ELPM-S3LW offers the flexibility and efficiency you need.Efficiency oriented: With its focus on low energy consumption, the ELPM-S3LW is an excellent choice for projects that require long-lasting operating time and optimal energy use.Technical data:OBJEX ELPM S3LW/S3 ESP32-S3FN8 (32-bit, 240 MHz) Memory Size: 8 MB Flash GPIO: 33 available (7 reserved for LoRa - SPI) WiFi - IEEE 802.11 b/g/n-compliant Bluetooth 5/ Bluetooth LE Interfaces: I²C, I²S, SPI, UART, USB RGB status LED (WS2812B) Deep Stop Mode, rising/falling edge detector & RTC (1-100 nA) Footprint: 18 x 30 mm (0.71 x 1.18 in) Weight: 2.30 grams (0.08 oz)LoRa Based on SX1262 Frequency bands: 862 MHz to 928 MHz Signal power: 22 dBm Transmission distance: 10 km Communication interface: SPI 50 Ohm U.FL/pad antenna Full compatibility with LoRa and LoRaWAN

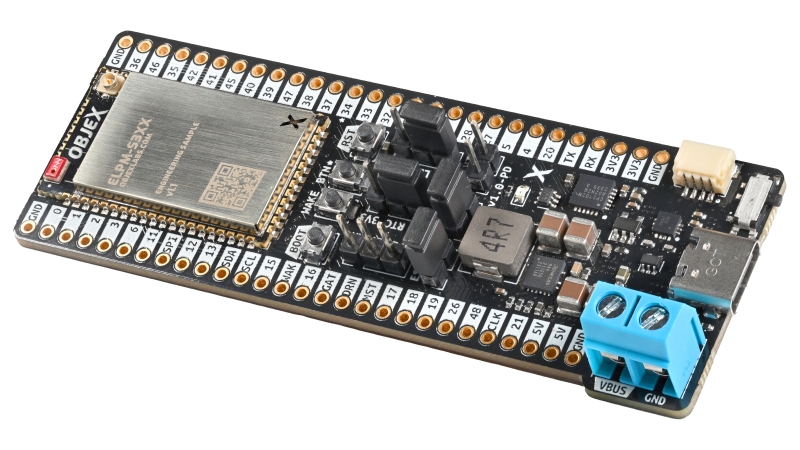

Link S3LW
Developer board with ELPM Lora module and ESP32 under one roof Quick testing and provisioning: The OBJEX Link S3LW convinces in the rapid prototyping, the development of IoT solutions as well as the testing and prototyping of IoT devices before mass production. Its versatility and easy integration allow designers and developers to create functional prototypes quickly, easily and securely. This will massively accelerate the transition from prototypes to production. Easy integration into ecosystems such as Home Assistant. flexible development options. The OBJEX Link S3LW is a development board based on the ELPM-S3LW. It is specially designed to meet the requirements of lowest energy consumption at the smallest size and maximum performance. Developers can implement projects that require both extreme low-energy operation and high-performance functionality with up to 100 W (USB-C PD 3.0 PPS).Important features: Versatile energy management: Supports both extreme low-energy operation (down to nanoamps) and high-performance functionality (up to 100 W) through fine-grained control of the energy supply.LoRa/LoRaWAN support: Ideal for long-range projects thanks to the integrated SX1262 transceiver.Comprehensive connectivity: Includes Wi-Fi (2.4GHz, 802.11 b/g/n) and Bluetooth 5 (LE) for a variety of communication needs.Technical Data: Powered by ELPM-S3LW v1.2 module (see full specs below) USB-C Type 2.0 PD PPS 3.0 (21 V 5 A) Terminal block for Vbus (USB Type-C PD) DC/DC synchronous step-down (V-out: 5 V 2 A) USB to UART Bridge (CP2102/CP2104) Power switch STEMMA 4 Pin - I2C connector Size: 30.50 x 84.74 mm (1.2 x 3.34 mm) Weight: 16.85 grams (0.59 oz)
